Nuevo

Modulo Lonet 808 Gsm / Gprs / Gps Sim808 - Arduino, Pic, Avr

769 pesos

en 12x 78 pesos con 07 centavos

IVA incluido

Envío gratis a todo el país

Conoce los tiempos y las formas de envío.

Devolución gratis

Tienes 30 días desde que lo recibes.

¡Última disponible!

Devolución gratis

Tienes 30 días desde que recibes el producto para devolverlo. ¡No importa el motivo!

Garantía

Compra Protegida con Mercado Pago

Recibe el producto que esperabas o te devolvemos tu dinero

Garantía de la tienda

Garantía del vendedor: 30 días

Características principales

MarcaLoNet
ModeloLoNet 808

Otras características

  • Microcontrolador: Arduino, PIC, AVR, NXP, Raspberry Pi ...

  • Voltaje de funcionamiento: 3.4V ~ 4.4V

  • Peso: 15 g

Descripción

-------------------------------------- COLDFIRE ELECTRONICA ----------------------------------------




---->> ENVIO EXPRESS * GRATIS * POR LA PAQUETERIA OFICIAL DE MERCADO LIBRE.

---->> SI REQUIERES FACTURA, PODEMOS FACTURAR, PRECIOS INCLUYEN IVA.

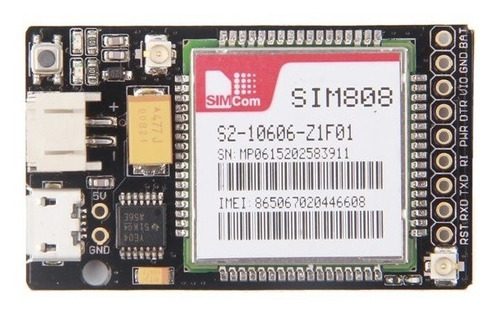

This board based on the latest SIMCOM SIM808 GSM/GPS module, it offers cellular GSM and GPRS data along with GPS technology for satellite navigation.

The board features ultra-low power consumption in sleep mode, giving the project incredibly long standby times. Furthermore there's an onboard battery charging circuit that can be used with LiPo batteries.

The GPS receiver is incredibly sensitive with 22 tracking and 66 acquisition channels, and also supports assisted-GPS (A-GPS) for indoor localization.

The board is controlled by AT command via UART and supports 3.3V and 5V logical level. It comes with a mini GPS and GSM antenna, however a battery is optional.The board uses the 2G (not 3G or LTE) GSM networks.



Features:

* Quad-band 850/900/1800/1900MHz

* GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load).

* GPRS mobile station class B.

* Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands).

* MicroUSB Port: the charging interface for Li-Ion battery, of input voltage range from 5V to 7V.

* Supports charging control for Li-Ion battery.

* Supports Real Time Clock.

* Supply voltage range 3.4V ~ 4.4V

* Integrated GPS/CNSS and supports A-GPS.

* Supports 3.0V to 5.0V logic level.

* Low power consumption, 1mA in sleep mode.

* Supports GPS NMEA protocol.

* Compact size 27mm x 46mm x 7mm

* Standard SIM Card.



Technical details:

* Dimensions: 90mm x128mm x7mm

* Weight: G.W 15g

* Receiver channels: 22 tracking / 66 acquisition

* Coarse/Acquisition code: GPS L1

* Tracking sensitivity: -165dBm

* Cold start time: 30s (typ.)

* Hot start time: 1s (typ.)

* Warm start time: 28s (typ.)

* Horizontal position accuracy: < 2.5m CEP

* Power consumption - Acquisition: 42mA

* Power consumption - Continuous tracking: 24mA

* Update rate: 5Hz




NOTA: NO INCLUYE TARJETA SIM, NI CABLE MICRO USB PARA CARGA DE BATERIA.





* INCLUYE:

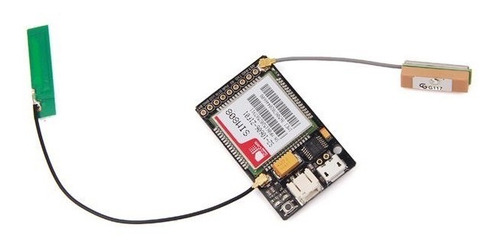

Modulo LoNet 808 - Mini GSM/GPRS + GPS Breakout.
2 Antenas ( Antena GSM / Antena GPS Pasiva ).

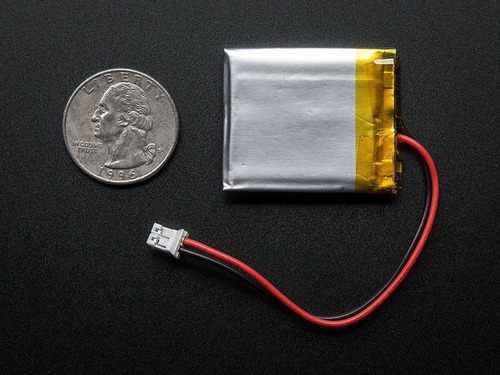

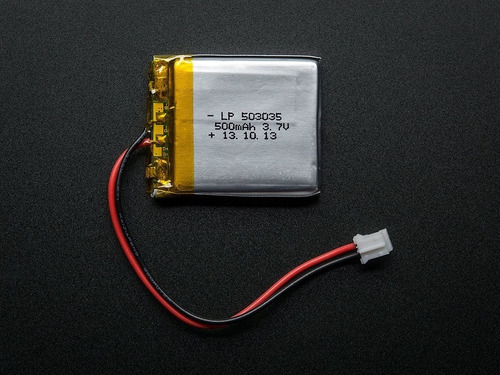

* Bateria Lipo 3.7V 500mAh.

* TUTORIAL Y EJEMPLOS CON ARDUINO ( EN INGLES, POR SEEED STUDIO Y ADAFRUIT )
