335 pesos

en 12x 34 pesos con 01 centavo

IVA incluido

Envío a todo el país

Conoce los tiempos y las formas de envío.

Devolución gratis

Tienes 30 días desde que lo recibes.

Stock disponible

Devolución gratis

Tienes 30 días desde que recibes el producto para devolverlo. ¡No importa el motivo!

Garantía

Compra Protegida con Mercado Pago

Recibe el producto que esperabas o te devolvemos tu dinero

Garantía de la tienda

Garantía del vendedor: 30 días

Características principales

MarcaAdafruit
ModeloAdafruit Assembled Data Logging shield for Arduino

Otras características

  • Microcontrolador: Arduino

  • Voltaje de funcionamiento: 5V

  • Peso: 22 g

Descripción

****************** COLDFIRE ELECTRONICA *******************




---->> SI REQUIERES FACTURA, PODEMOS FACTURAR, PRECIOS INCLUYEN IVA.




** PRODUCTO DE ALTA CALIDAD, FABRICADO EN USA POR ADAFRUIT, NO CHINO ! **

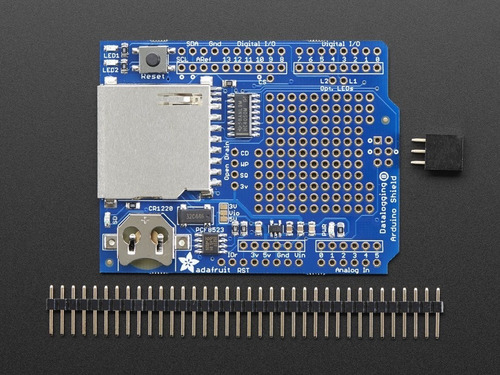

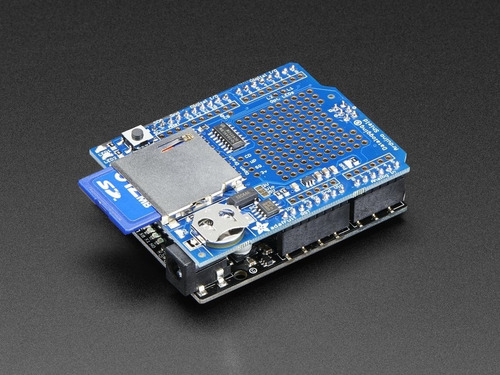

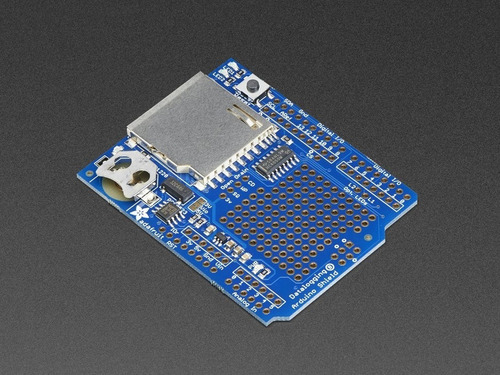

Here's a handy Arduino shield: we've had a lot of people looking for a dedicated and well-designed data logging shield. We worked hard to engineer an inexpensive but well-rounded design. Not only is it easy to assemble and customize, it also comes with great documentation and libraries.

Our latest version of this popular shield has all the features of the popular original, and is "R3" compatible so you can use it with just about any Arduino or compatible. You can be up and running with it in less than 15 minutes - saving data to files on any FAT16 or FAT32 formatted SD card, to be read by any plotting, spreadsheet or analysis program. We even have a tutorial on how to use two free software programs to plot your data The included RTC (Real Time Clock) can be used to timestamp all your data with the current time, so that you know precisely what happened when!



* SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card.

* Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery backup lasts for years.

* Included libraries and example code for both SD and RTC mean you can get going quickly.

* Prototyping area for soldering connectors, circuitry or sensors.

* Onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run.



With this new version you can use it with:

* Arduino UNO or ATmega328 compatible - 4 analog channels at 10 bit resolution, 6 if RTC is not used.

* Arduino Leonardo or ATmega32u4 compatible - 12 analog channels at 10 bit resolution.

* Arduino Mega R3 or ATmega2560 compatible - 16 analog inputs (10-bit).

* Arduino Zero or ATSAMD21 compatible - 6 analog inputs (12-bit).

* Arduino Due - 12 analog inputs (12-bit).



Of course you can log anything you like, including digital sensors that have Arduino libraries, serial data, bit timings, and more! For more information, including libraries, schematics and examples see the data logger shield webpage.


Dimensions (assembled): 70mm x 53mm x 17mm (2.7in x 2in x 0.65in)
SD Card protrudes by 10mm (0.4in) when inserted
Weight: 22g/0.8oz
The RTC uses I2C 7-bit address 0x68.




NOTAS:

* NO INCLUYE PLACA ARDUINO NI MEMORIA SD.

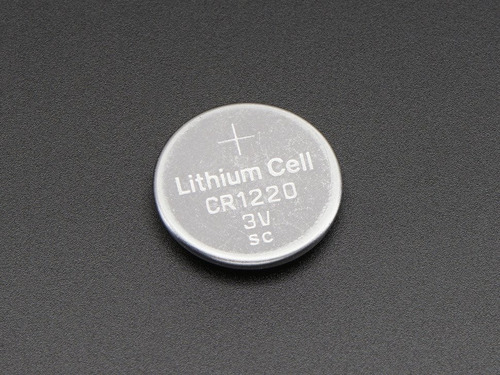

* Incluye los Headers hembra de expansión y también la batería de 3V.


* Incluye Tutorial, librerías y ejemplos hechos por Adafruit ( PDF en Ingles ).
